Using Test Data Rules (G-Rules) with EDI Overview
Important: We recommend going through the Software Tester Intermediate Flight Plan first to become more familiar with setting up and using G-Rules within the GenRocket web platform.
This lesson provides an overview of how G-Rules can be used with G-Cases to apply business logic to generated EDI Documents/Transaction Sets.
Test Data Rules are a key part of GenRocket’s Self Service Test Data Portal. We organize all the Test Data Rule functionality into a part of the GenRocket platform we call “G-Rules.”
What are Test Data Rules (or G-Rules)?
Test Data Rules (or G-Rules) define business logic that can be applied to generated test data. G-Rule Suites are used to manage G-Rules and may contain one or many G-Rules.
Each G-Rule may have one or many Actions/Conditions, which define the business logic as a Conditional Statement.
What is a G-Rule Condition?
A Condition represents the IF portion of a conditional statement for 1 Segment/Loop (i.e., Domain) and 1 Element (i.e., Attribute).
A G-Rule can have one or many Conditions, which can be combined using AND or OR. Here is an example of a Condition for EDI:
IF (NM1_SubmitterName_1000A.NM101__EntityIdentifierCode == ’41’AND
NM1_SubmitterName_1000A.NM102__EntityTypeQualifier == ‘1’)
What is a G-Rule Action?
An Action represents the THEN portion of a conditional statement for 1 Segment/Loop (i.e., Domain) and 1 Element (i.e., Attribute).
A G-Rule can have one or multiple Actions. Here is an example of an Action for EDI:
NM1_SubmitterName_1000A.NM103__SubmitterLastOrOrganizationName = ‘Taylor’
NM1_SubmitterName_1000A.NM104__SubmitterFirstName = ‘Hycel’
How can they be used with EDI?
Users can define Conditions in G-Rules that must be met for an Action to take place. The Action will generate a constant value, or a value generated by a referenced Generator.
For example, G-Rules can determine what values will be generated for one or more Elements within a Segment based on the defined Actions.

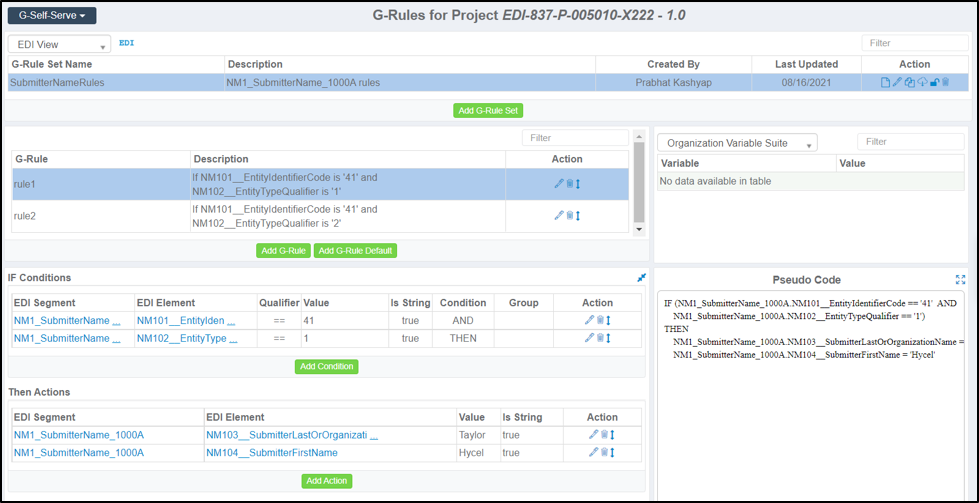

G-Rule 1: If the NM101_EntityIdentifierCode is “41” and the NM102_ EntityTypeQualifier is “1” within the NM1_SubmitterName_1000A Segment, then the following data values will be used:
- NM103_SubmitterLastOrOrganizationName = “Taylor”
- NM104_SubmitterFirstName = “Hycel”
G-Rule 2: If the NM101_EntityIdentifierCode is “41” and the NM102_EntityTypeQualifier is “2” within the NM1_SubmitterName_1000A Segment, then the following data values will be used:
- NM103_SubmitterLastOrOrganizationName = “GenRocket”
- NM104_SubmitterFirstName = References a Generator that will generate an “Empty” value
How to Access G-Rules from the EDI Management Dashboard

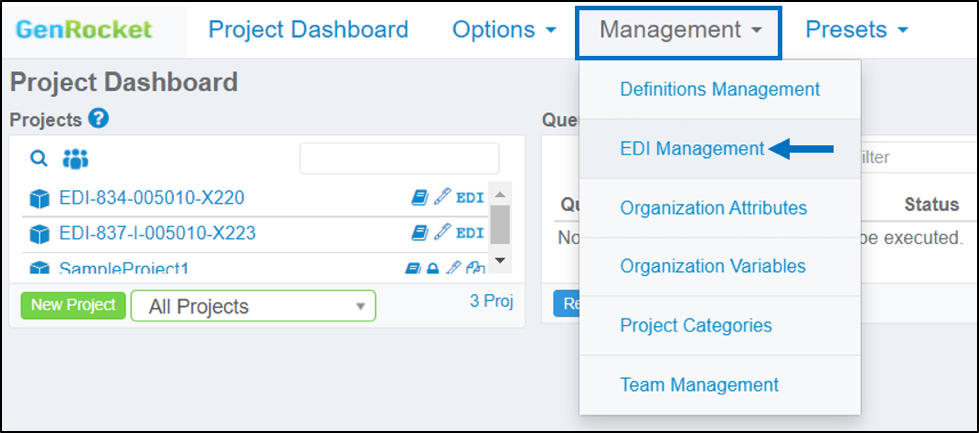

Step 1: Expand the Management Menu within the Menu Bar and select EDI Management.

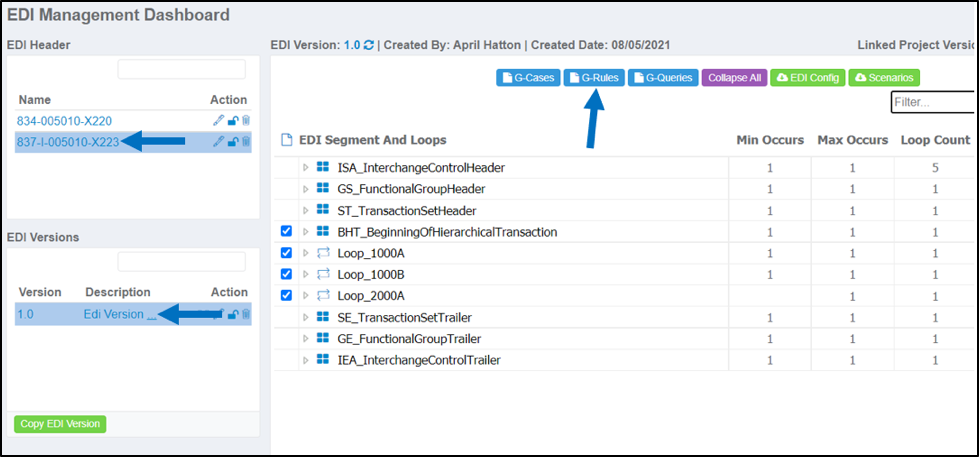

Step 2: Select the EDI Project within the EDI Header Pane.
Step 3: Select the EDI Project Version within the EDI Versions Pane (if the EDI Project has multiple Project Versions).
Step 4: Click on the G-Rules button.
How to Access G-Rules from the Project Dashboard

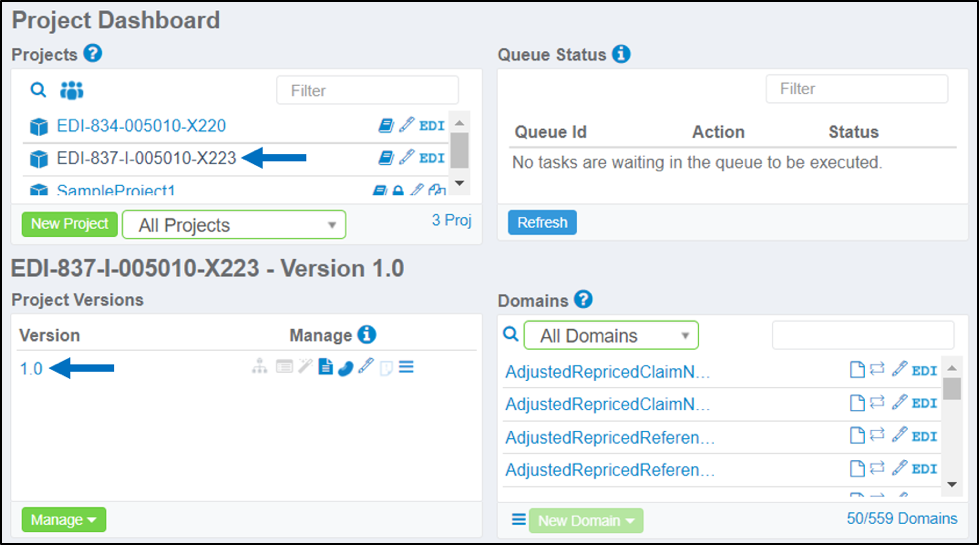

Step 1: Select the EDI Project within the Projects Pane.
Step 2: Select the EDI Project Version within the Project Versions Pane (if the EDI Project has multiple Project Versions).

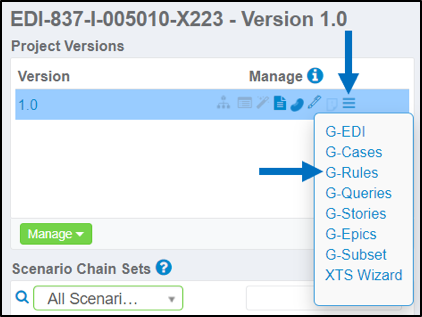

Step 3: Expand the Self Serve Menu Options drop-down menu and select G-Rules.

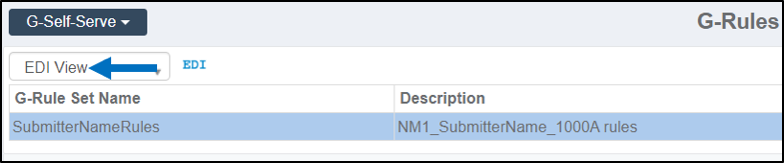

Step 4: Select the EDI View option within the drop-down menu at the top left of the G-Rules Management Dashboard.
