UI Project Dashboard Panes

– Project Versions Pane, Domains Pane, Scenarios Pane, Scenario Chains Pane, Scenario Chain Sets Pane, and Management Pane

This lesson provides a brief introduction to panes displayed within the Project Dashboard. These panes are displayed after a Project has been selected within the Projects Pane.

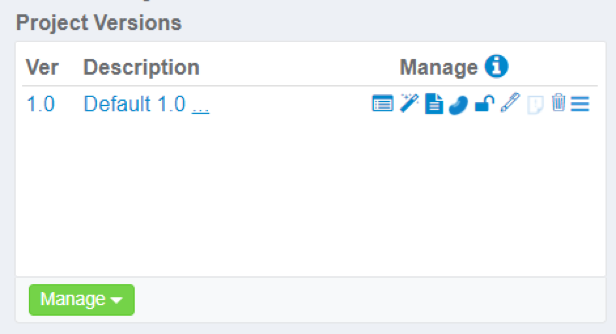

Project Versions Pane

The Project Versions Pane can be used to view and manage Project Versions for a given Project within the web platform. After a Project has been selected within the Projects Pane, all Project Versions will be displayed here.

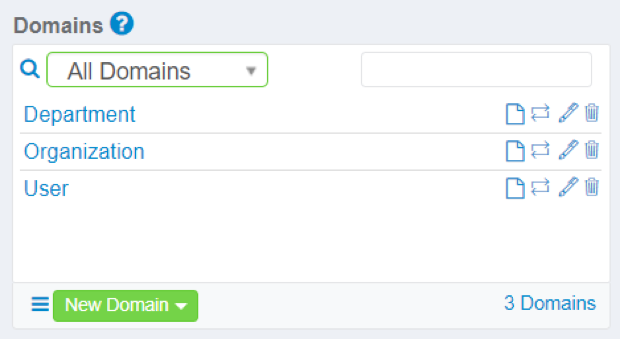

Domains Pane

The Domains Pane can be used to view and manage all Domains for a selected Project Version within a given Project. From this pane, you can access and manage each Domain’s configuration.

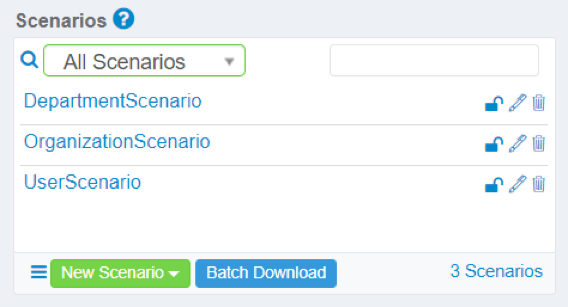

Scenarios Pane

The Scenarios Pane can be used to view, add, and manage Scenarios for a selected Project Version within a given Project.

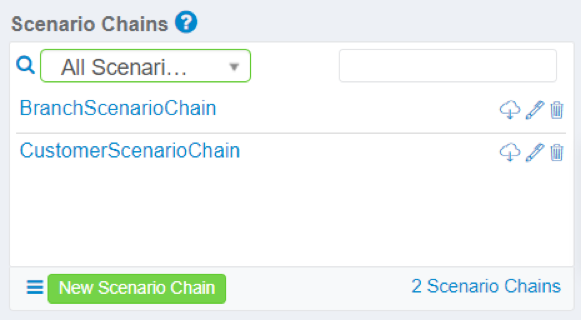

Scenario Chains Pane

The Scenario Chains Pane can be used to view, add, and manage Scenario Chains for a selected Project Version within a given Project.

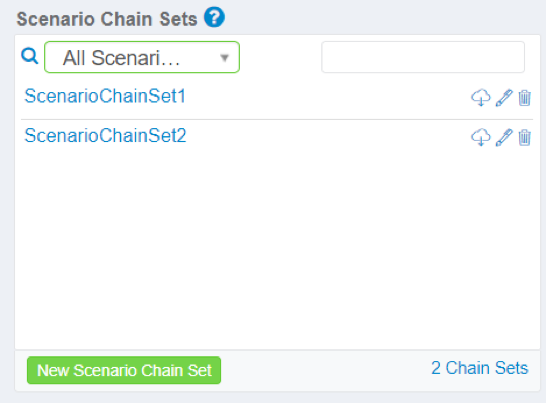

Scenario Chain Sets Pane

The Scenario Chain Sets Pane can be used to view, create, and manage Scenario Chain Sets for a selected Project Version within a given Project.

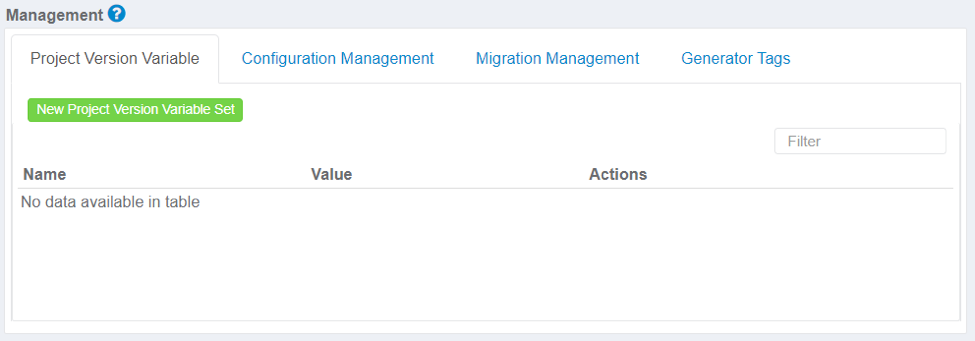

Management Pane

The Management Pane is located at the bottom of right of the Project Dashboard. It contains 4 management tabs. Each of these tabs serves a different purpose within the web platform.

Here is a brief description of each tab within the Management Pane:

Project Version Variable Tab – This tab can be used to view, create, and manage Project Version Variable Sets.
Configuration Management Tab – This tab can be used to create one or more configuration files, which are required to merge data from different Domains (in Segment format) into one or more files. For example, a configuration file can be used to create nested:
- JSON by JSONSegmentMergeReceiver
- XML by XMLSegmentMergeReceiver
Migration Management Tab – This tab can be used to create and manage migration configuration files. These files are used by the G-Migration feature to migrate small or large amounts of data from a source database to a destination database for one or many tables.
Generator Tags Tab – This tab can be used to view, create, and manage Project Level Generator Tags. Generator Tags can be used to automatically assign a Generator intelligently.

Link:

Project Dashboard Overview Article

https://genrocket.freshdesk.com/a/solutions/articles/19000104045
